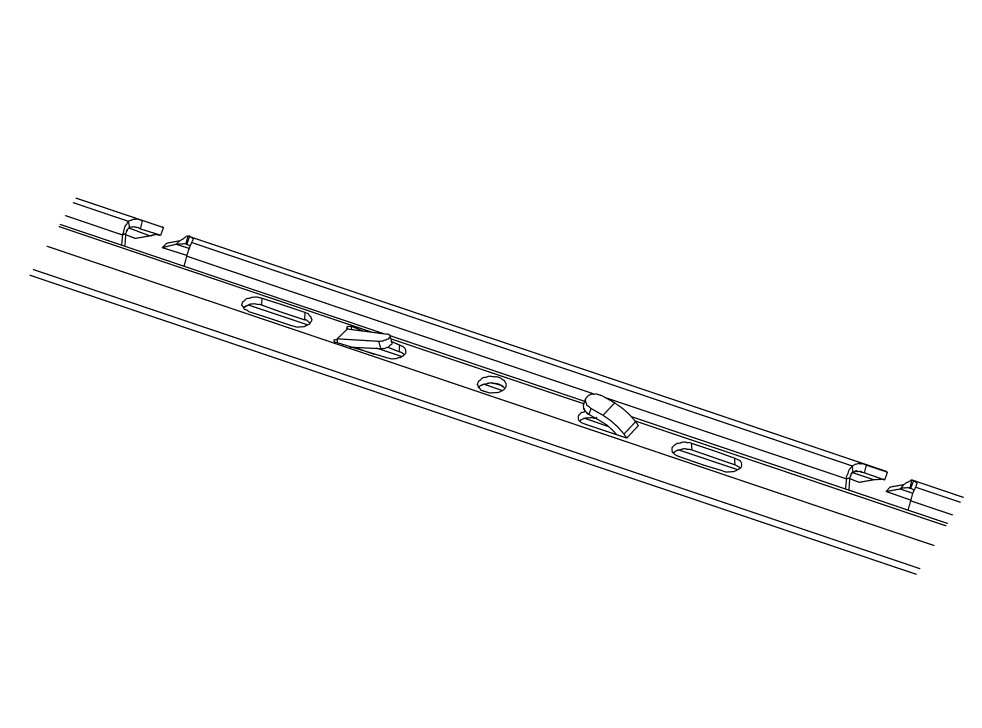

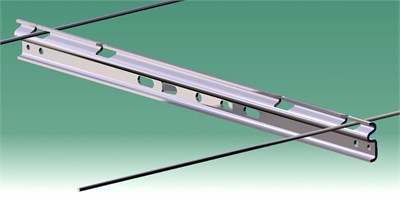

CROSSARM – For Intermediate post
ADVANTAGES
• Different length options between 15 cm and 100 cm.
• Screwless and weldless installation
• Possibility to use optional 5cm – 12cm U bolts
• Easy wire routing holes (can be moved without removing the wire from the row head)
• Very resistant to impacts due to its flexible structure
• Easy conversion to each other in Double Te, Single Te, Wide Te or Triple Te systems
• Galvanized coated (high dense coating)
• LESS WORKMANSHIP (U-shaped poles are hammered into the soil by only 50-60 cm without digging holes and pouring concrete, and poles weighing 2.5 – 8 kg on average are easily transported)
• LONG LASTING (an average pole life of 25-50 years depending on the type of galvanizing (zinc) and geographical conditions)
• FLEXIBLE USAGE (solid and multi-purpose, hooks or Tee handles can be attached to empty cocoon-shaped holes, unmatched ease of use with 10cm spaced middle holes and Te handle holes, Butafix Te handle in different lengths if desired)
• EASY INSTALLATION (easy and flexible installation with practical installation apparatus and functional special bonding products)
•

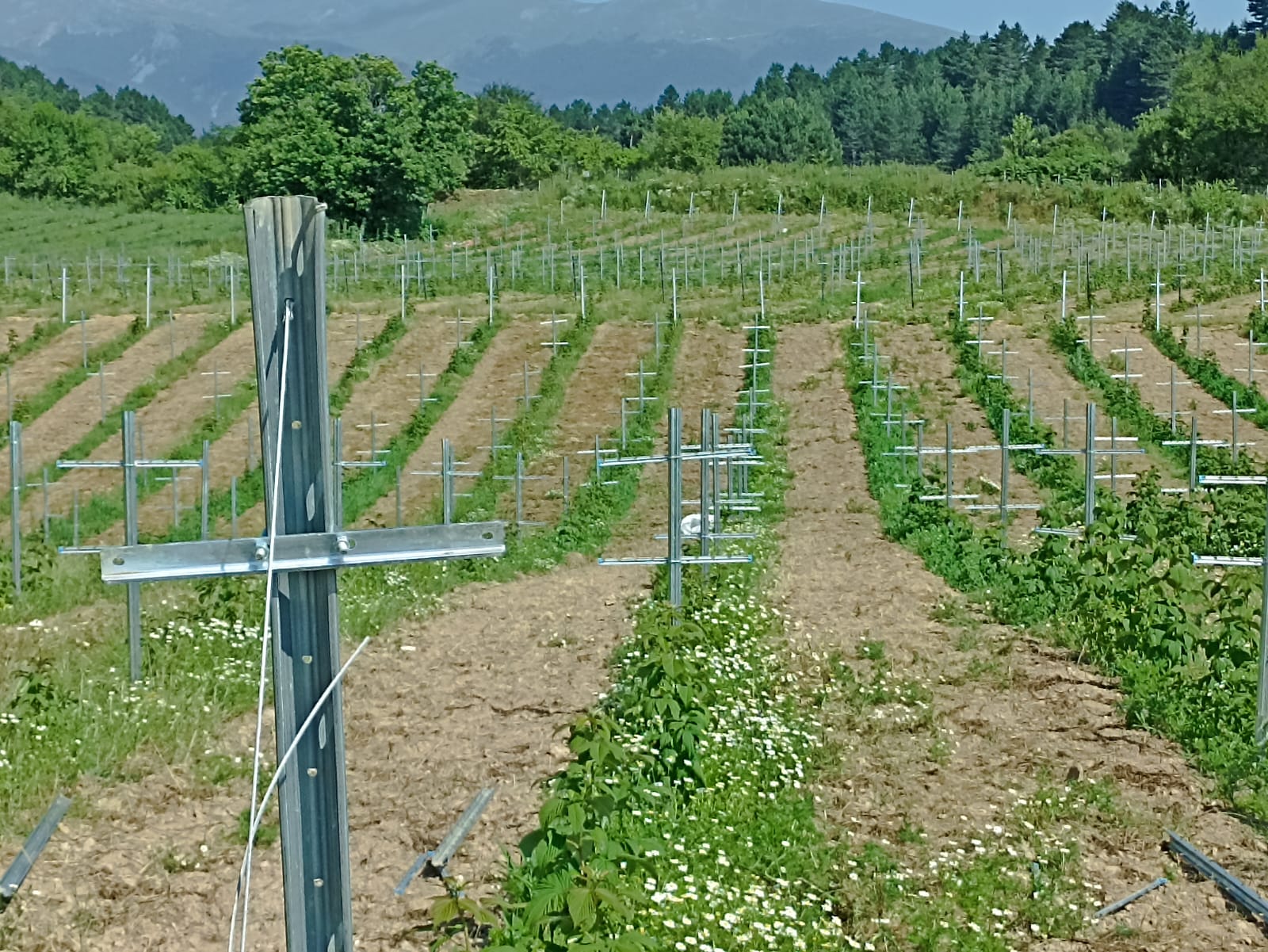

With the improved practical Te Arms (Crossarm), you can make your vineyard, especially made with table grape varieties, very productive.

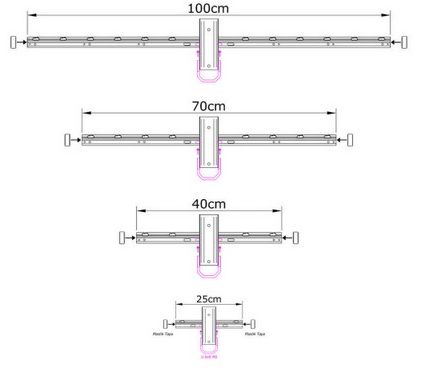

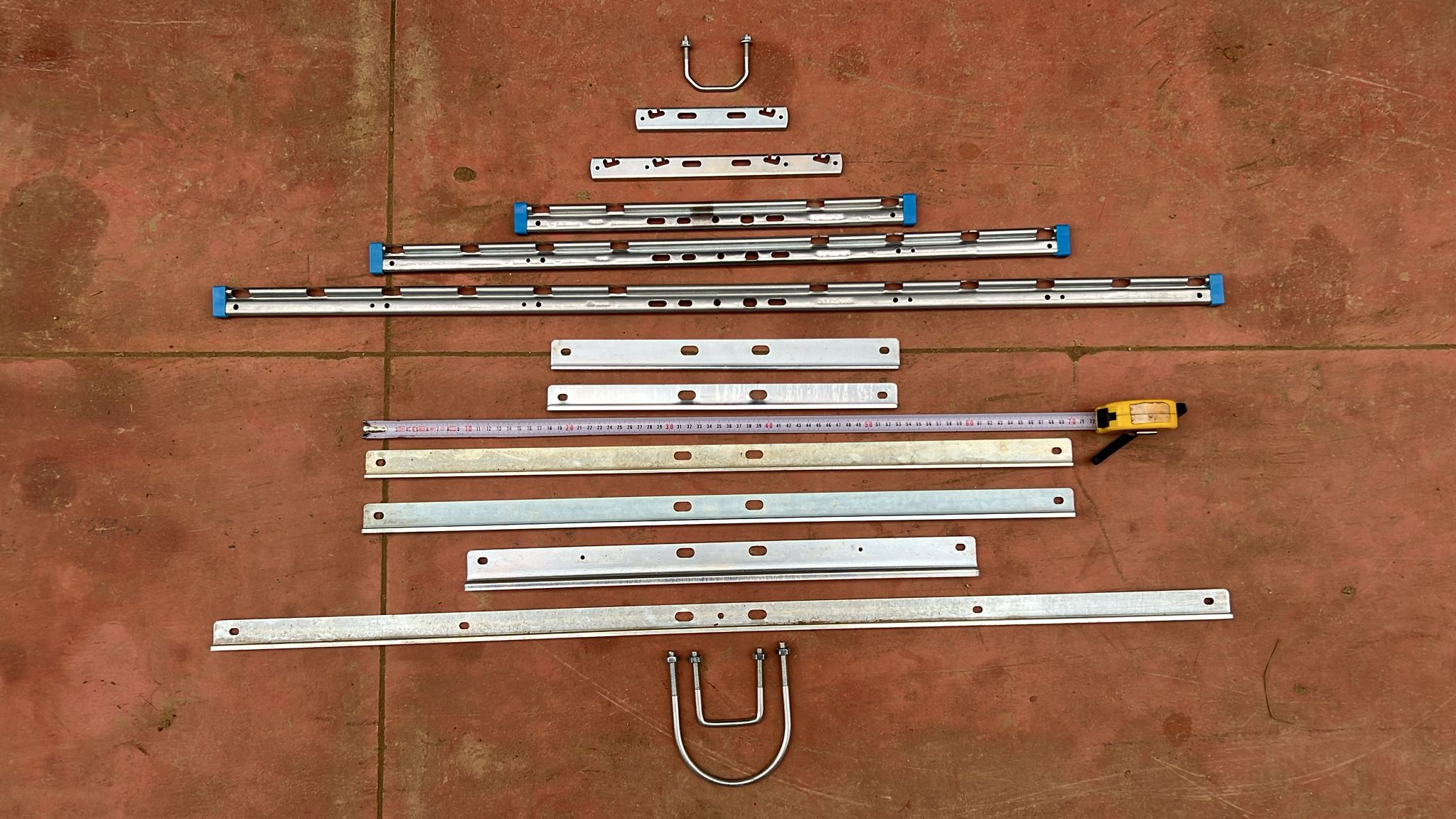

Production Lengths – Butafix Crossarms for Intermadiate Post
LENGTH WEIGHT
15cm
25cm 0.140kg
40cm 0.230kg
70cm 0.420kg
100cm 0,600kg

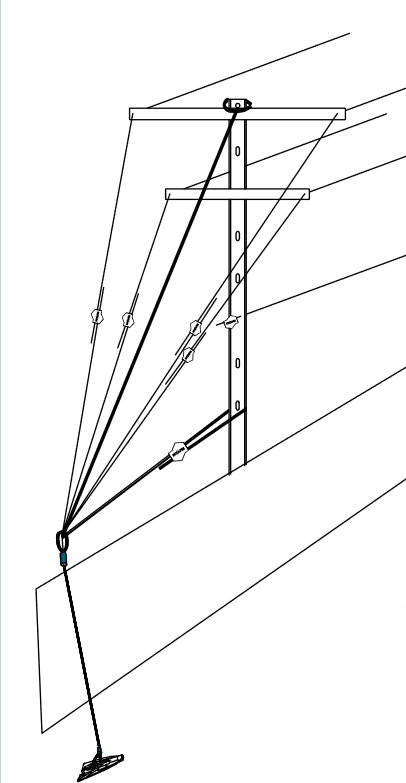

Crossarm – Head Mast

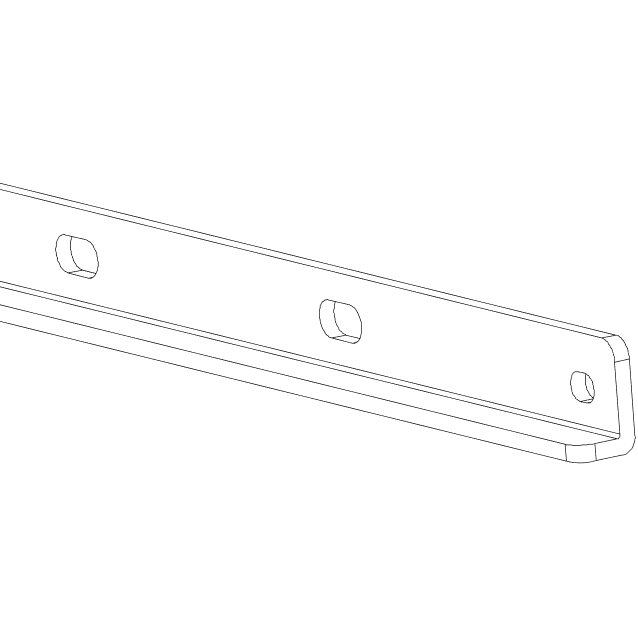

Head Post Crossarm (For metal, concrete, wood, metal pipe tie posts)
Steel Product
• Hot Dip Galvanized
• 3mm and 4mm Thick Sheet
• Use of Flexible U Bolt Size with Large Boll Holes
• Very Long LastingS
• Special form that increases strength
• High quality Galvanized Steel U Bolt
ADVANTAGES
• LESS WORKMANSHIP (U-shaped poles are hammered into the soil by only 50-60 cm without digging holes and pouring concrete, and poles weighing 2.5 – 8 kg on average are easily transported)
• LONG LASTING (an average pole life of 25-50 years depending on the type of galvanizing (zinc) and geographical conditions)
• FLEXIBLE USAGE (solid and multi-purpose, hooks or Tee handles can be attached to empty cocoon-shaped holes, unmatched ease of use with 10cm spaced middle holes and Te handle holes, Butafix Te handle in different lengths if desired)
• EASY INSTALLATION (easy and flexible installation with practical installation apparatus and functional special bonding products)
